7′ WIDE AVALANCHE CARGO TRAILER
STANDARD FEATURES
- 205/75R15 C Range Tires
- White Spoke Wheels – Bolt Pattern 5 – 4 1/2
- **Optional black steel wheels shown in photo above.**
- A-Frame Tongue w/Safety Chains and Hooks
- Genuine Dexter Torflex Axle(s) w/E-Z Lube Hubs
- Forward Self Adjusting Electric Brakes with Breakaway Kit & Charger
- 7 Pole Light Plug Connector
- 3/8″ Plywood Walls – 16″ OC
- .030 Exterior Aluminum (Colors Available)
- .032 Seamless 1 pc. Aluminum Roof – LIFETIME WARRANTY
- Aluminum Roof Bows – 16″ OC
- 3/4″ Plywood Floor – Painted Both Sides – LIFETIME WARRANTY
- 4″ Formed C-Channel Crossmembers – 24″ OC
- Structural Steel Tube Frame
- Aluminum Diamond Plate Corner
- Aluminum Diamond Plate Front Stone Guard
- Smooth Aluminum Fenders
- Hot Dipped Galvanized Door Hardware
- LED Lighting – LIFETIME WARRANTY
TRAILER DIMENSIONS
SPECIFICATIONS
| 7'W Single Axle Avalanche Cargo Trailer | 7'W Tandem Axle Avalanche Cargo Trailer | ||||||
|---|---|---|---|---|---|---|---|
| 7' x 10' | 7' x 12' | Size | 7' x 12' | 7' x 14' | 7' x 16' | 7' x 18' | 7' x 20' |
| CM710AVL | CM712AVL | Model # | CM712AVL-HD | CM714AVL-HD | CM716AVL-HD | CM718AVL-HD | CM720AVL-HD |
| 3500# | GVWR | 7000# | |||||
| 3500# Dexter Torflex Axle | Axle(s) | 2 - 3500# Dexter Torflex Axles | |||||
| 2" | Coupler/Hitch Ball Size | 2 5/16" | |||||
| 14' | 16' | Overall Exterior Length | 16' | 18' | 20' | 22' | 24' |
| 92" | Overall Exterior Height | 92" | 93" | 94" | |||
| 99 1/2" | Overall Exterior Width | 99 1/2" | |||||
| 9'8" | 11'8" | Interior Box Length | 11'8" | 13'8" | 15'8" | 17' 8" | 19' 8" |
| 21" | Interior Nose Length to Point | 21" | |||||
| 80" | Interior Box Width | 80" | |||||
| 62" | Interior Nose Point Height | 62" | |||||
| 72" | Interior Height | 72" | |||||
| 19" | Platform Height | 19" | 20" | 21" | |||
| 18" | Hitch Height | 18" | 19" | 20" | |||
| 78" W x 68" H Opening | Double Rear Doors (standard) | 78" W x 68" H Opening | 78"W x 65"H Opening | ||||
| 78"W x 65"H Opening | Ramp Rear Door (optional) | 78"W x 65"H Opening | |||||
| 30"W | 36"W | Side Man Door Size (standard) | 30"W | 36"W | |||
| 2" x 4" Tube | Frame | 2" x 4" Tube | 2" x 5" Tube | 2" x 6" Tube | |||
| 2000# | Tongue Jack | 2000# | 5000# | ||||

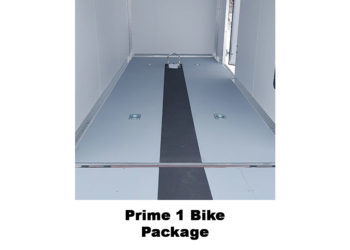

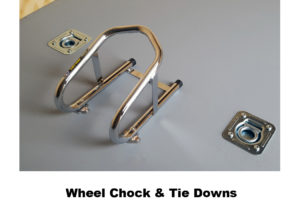

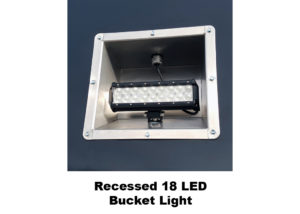

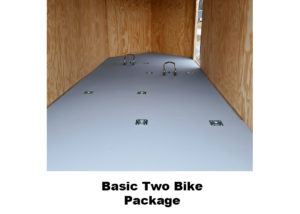

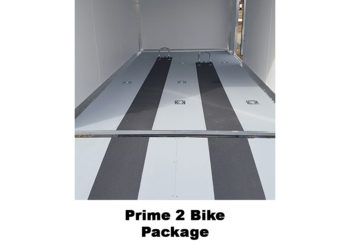

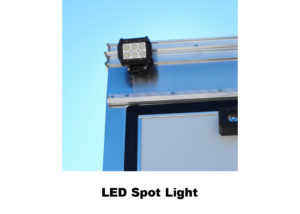

TRAILER OPTIONS
COLOR OPTIONS
GET A QUOTE
Need a quote for a Cargo Trailer? Please click the button below and fill out the necessary information. Please be sure to know the trailer size(s), closest dealer and color option before filling out the form.
