EAGLE SERIES CAR TRAILER
(5th Wheel | Gooseneck)
STANDARD FEATURES
- 225/75R15 D Range Tires, White Spoke Wheels – 6 Bolt
- Genuine Dexter Spring Axles w/E-Z Lube Hubs
- Forward Self Adjusting Electric Brakes w/Breakaway Kit & Charger
- 7 Pole Light Plug Connector
- 3/8″ Plywood Walls – 16″OC
- 1 1/2″ x 1 1/2″ Square Steel Tube Wall Construction
- .032 Seamless 1 pc. Aluminum Roof – LIFETIME WARRANTY
- Steel Hat Channel Roof Bows – 24″ OC
- 3/4″ Plywood Floor – Painted Both Sides – LIFETIME WARRANTY
- Formed C-Channel Crossmembers – 16″ OC
- Interior Box Width: 96″
- Width Between Wheel Wells: 82″
- Interior Height: 80″
- Overall Exterior Height: 103″
- Overall Exterior Width: 102″
- Ramp Rear Door Opening: 94″W x 75″H
- 48″ Side Man Door w/Inside Step
- Aluminum Diamond Plate Corners
- Smooth Aluminum Fender Flares
- Hot Dipped Galvanized Door Hardware
- .030 Exterior Aluminum (Colors Available)
- LED Lighting – LIFETIME WARRANTY
- GOOSENECK: 2 5/16″ Coupler
- 5TH WHEEL: King Pin
- GN/5TH WHEEL: 26,000# Manual 2 Speed Landing Gear
- Platform Height: 22″
SPECIFICATIONS
| Eagle 5th Wheel / Gooseneck Tandem Axle | |||||
|---|---|---|---|---|---|
| Size | 8.5' X 24' | 8.5' x 26' | 8.5' x 28' | 8.5' x 30' | 8.5' x 32' |
| Model # for Gooseneck | CM824EGL/GN | CM826EGL/GN | CM828EGL/GN | CM830EGL/GN | CM832EGL/GN |
| Model # for 5th Wheel | CM824EGL/5TH | CM826EGL/5TH | CM828EGL/5TH | CM830EGL/5TH | CM832EGL/5TH |
| GVWR | 9990# GVWR - (2) 6000# Dexter Spring Axles w/4" Drop | ||||
| Box Length | 16' Down, 8' Up | 18' Down, 8' Up | 20' Down, 8' Up | 22' Down, 8' Up | 24' Down, 8' Up |
| Beaver Tail | 48" w/3" Drop | ||||
| Frame | 2" x 6" Structural Steel Tube | ||||
| Eagle 5th Wheel / Gooseneck Tandem Axle | |||||
|---|---|---|---|---|---|
| Size | 8.5' x 34' | 8.5' x 36' | 8.5' x 38' | 8.5' x 40' | 8.5' x 42' |
| Model # for Gooseneck | CM834EGL/GN | CM836EGL/GN | CM838EGL/GN | CM840EGL/GN | CM842EGL/GN |
| Model # for 5th Wheel | CM834EGL/5TH | CM836EGL/5TH | CM838EGL/5TH | CM840EGL/5TH | CM842EGL/5TH |
| GVWR | 9990# GVWR - (2) 6000# Dexter Spring Axles w/4" Drop | ||||
| Box Length | 26' Down, 8' Up | 28' Down, 8' Up | 30' Down, 8' Up | 32' Down, 8' Up | 34' Down, 8' Up |
| Beaver Tail | 48" w/3" Drop | ||||
| Frame | 2" x 6" Structural Steel Tube | 2" x 8" Structural Steel Tube | |||
| Eagle Series 5th Wheel Gooseneck Triaxle | |||
|---|---|---|---|
| Size | 8.5' X 44' | 8.5' x 46' | 8.5' x 48' |
| Model # | CM844EGL/3 | CM846EGL/3 | CM848EGL/3 |
| GVWR | 9990# to 15,000# GVWR - (3) 6000# Dexter Spring Axles w/4" Drop | ||
| Box Length | 36' Down, 8' Up | 38' Down, 8' Up | 40' Down, 8' Up |
| Beaver Tail | 48" w/3" Drop | ||
| Frame | 2" x 8" Structural Steel Tube | ||

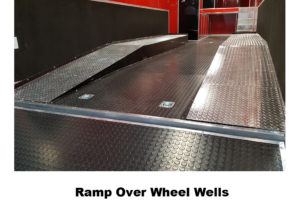

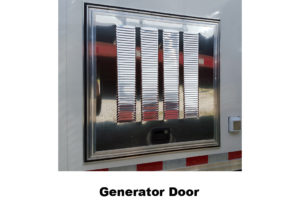

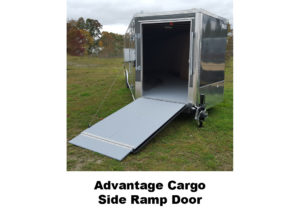

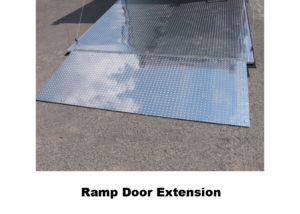

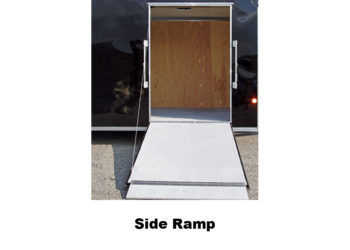

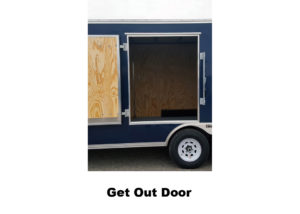

TRAILER OPTIONS
COLOR OPTIONS
GET A QUOTE
Need a quote for an Enclosed Car Trailer? Please click the button below and fill out the necessary information. Please be sure to know the trailer size(s), closest dealer and color option before filling out the form.
